R-F(17"-26")-2PC

Availability:

Product Description

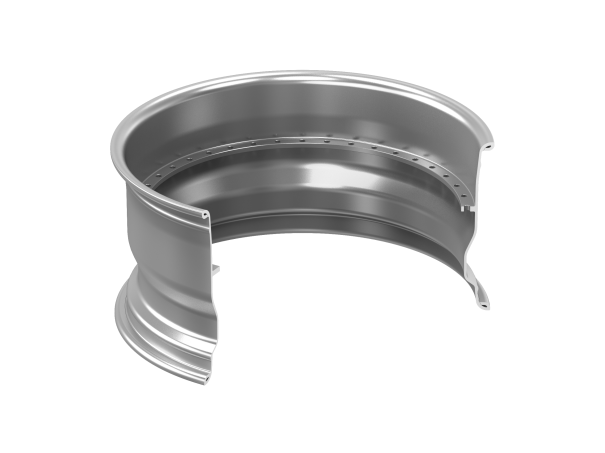

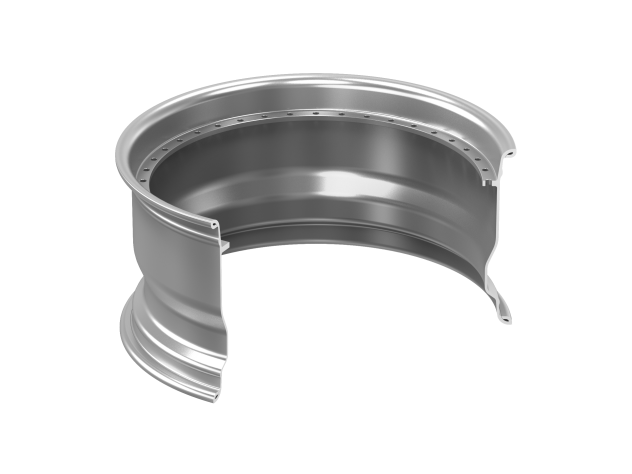

Ultra-Light Two Piece Assembled Forged Barrel (2UTW)

R-F(17"-26")-2PC

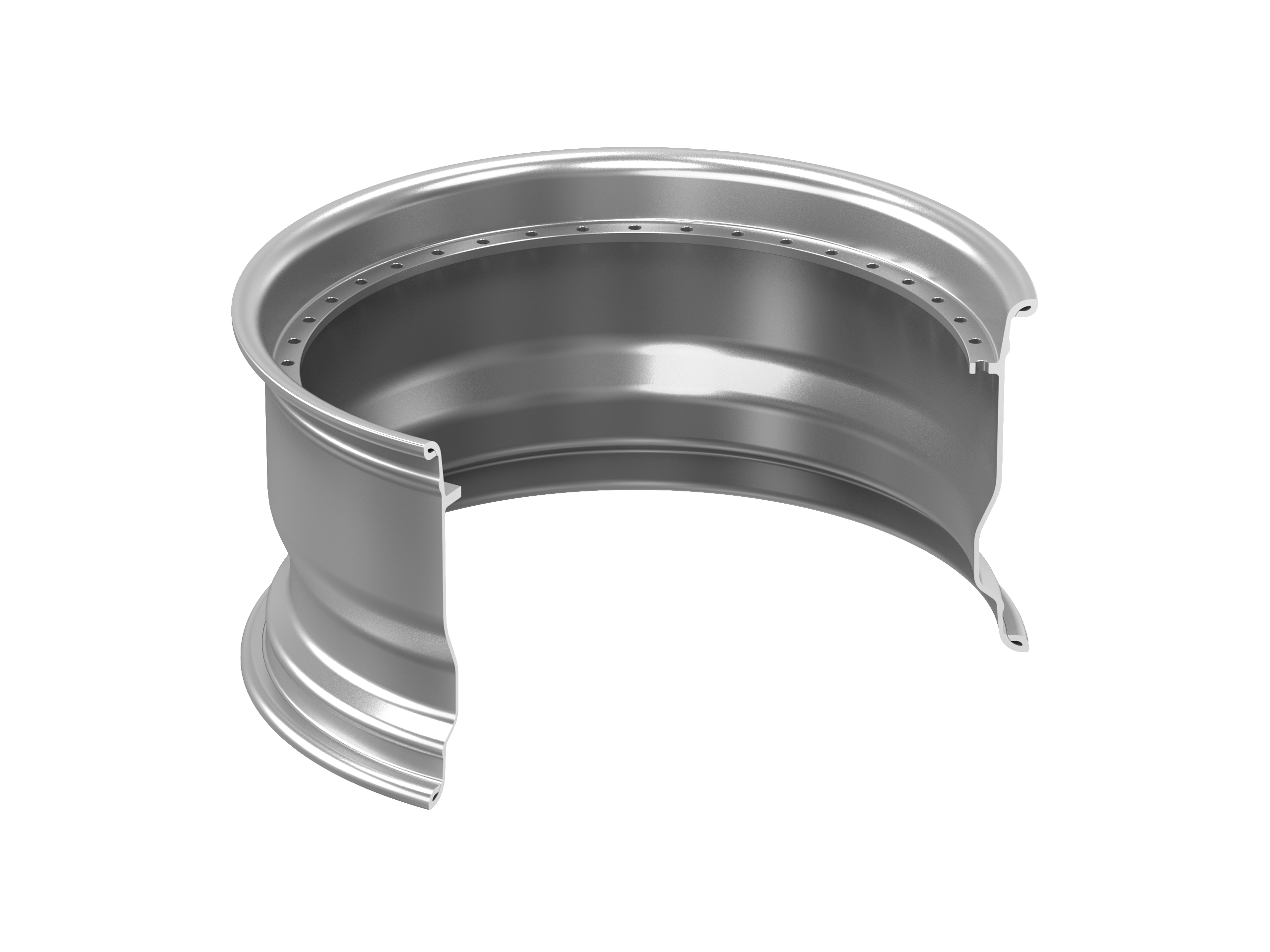

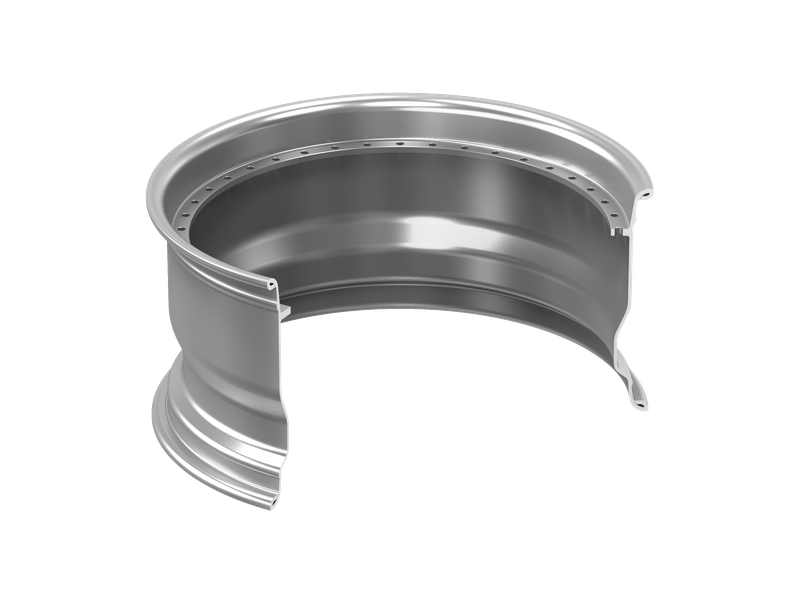

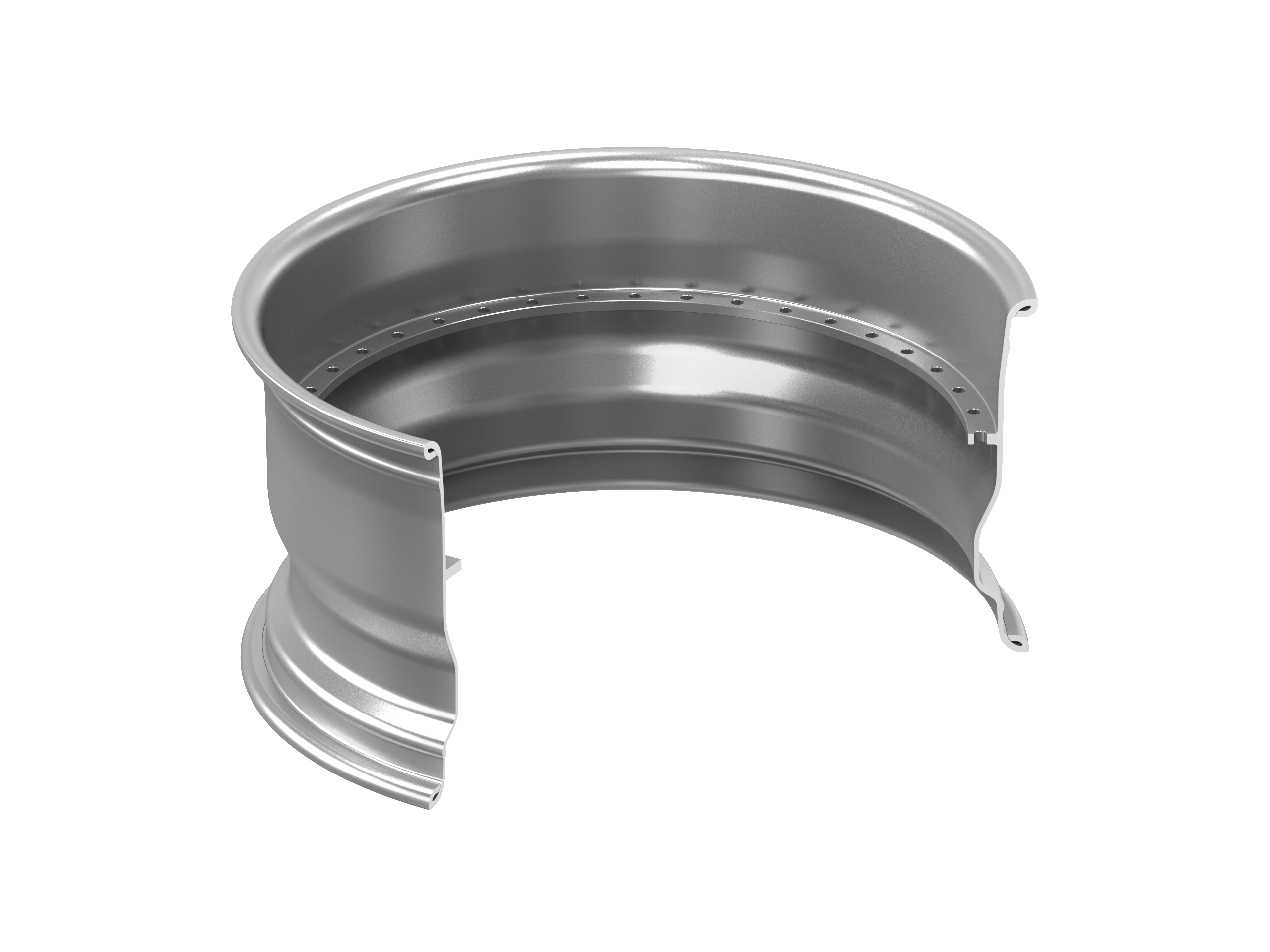

IPC offers shallow-to-deep adaptable multi-point positioning on the Bolt Step, with customization for specific client requirements.

REVERSE RIM ROLLED LIP(R-F)

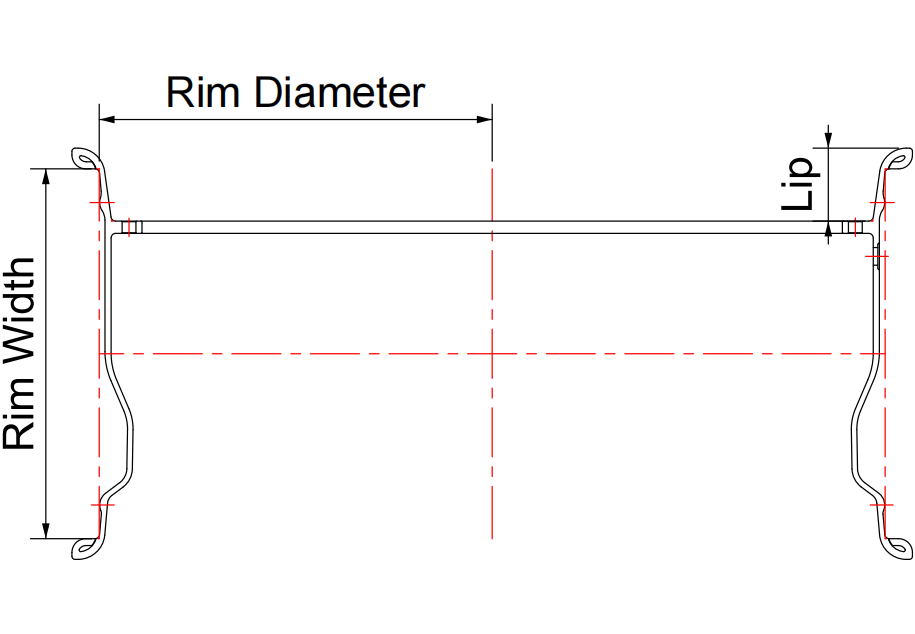

Rim Diameter(Inch)	Rim Width(Inch)	LIP Depth(Inch)
17"	7.0"-11"	1.5"-5.5"
18''	7.5''-14''	1.5''-8.0''
19''	7.0''-14''	1.5''-8.0''
20''	8.0''-14''	1.5''-8.0''
21''	8.0''-14''	1.5''-8.0''
22''	8.5''-14''	2.5''-8.0''
24''	8.5''-14''	2.5''-3.0''
26''	8.5''-12''	2.0''-4.0''

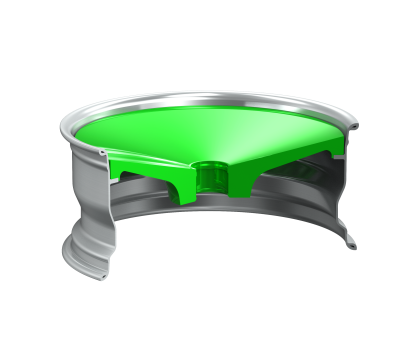

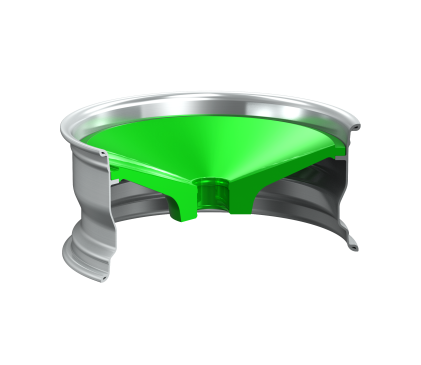

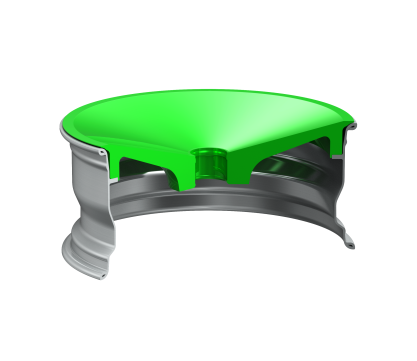

Forged Barrel and center Disc assembly diagram

Forged rim Forged barrel Forged 2 piece barrel Forged 3 piece barrel Forged barrel supplier

RELATED PRODUCTS

IPC was founded in year 2013 and occupies 33350m2 land with 15000m2 plant building and has passed ISO9001certification.

Through years of dedicated and sustained R&D efforts, IPC has developed IP-protected products, including Ultra-Light 2-piece and 3-piece aluminum forged alloy rims which offer flexibility in diameters, rim width and wheel offsets to accommodate vehicle applications for Sedan, SUV, Ute., Etc..

As the manufacture base of many well-known wheel companies , IPC products are tested, certified and recognized across global regions and standards, including CAAM, VIA, JWL and TUV (366-0275-25-WIRD-TG).
