R-F(17"-26")-3PC

Availability:

Product Description

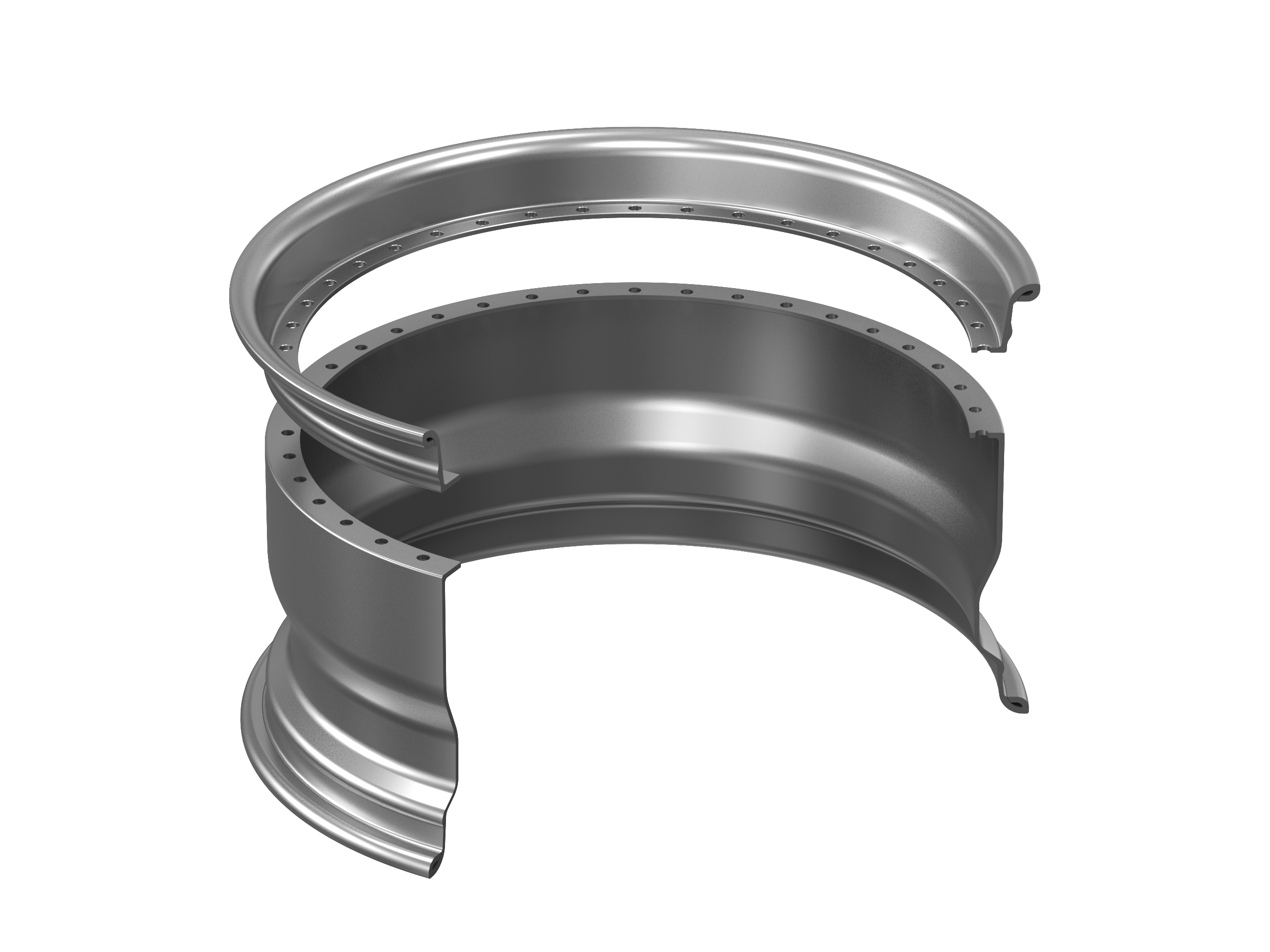

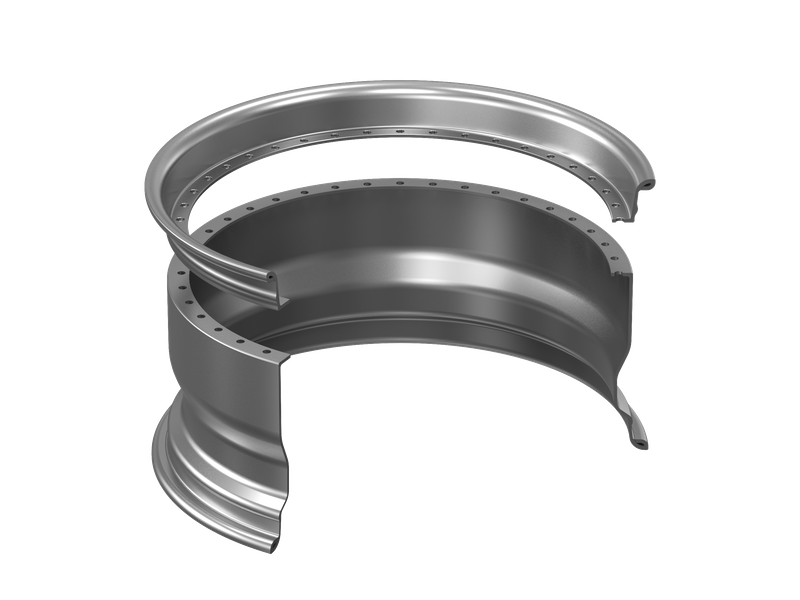

Ultra-Light Three Piece Assembled Forged Barrel (3UTW)

R-F(17"-26")-3PC

IPC offers shallow-to-deep adaptable multi-point positioning on the Bolt Step, with customization for specific client requirements.

REVERSE RIM ROLLED LIP R-F-3P

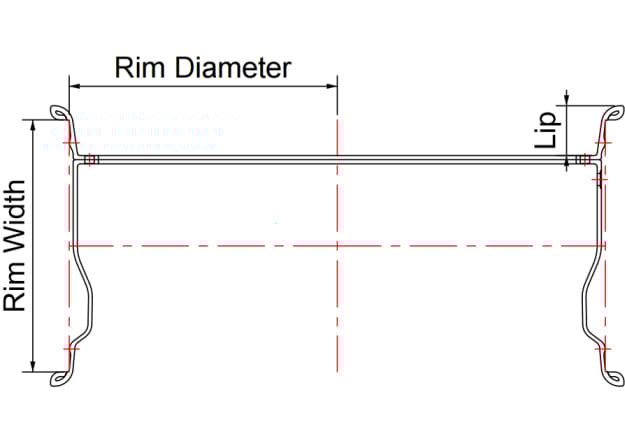

Rim Diameter(Inch)	Rim Width(Inch)	LIP Depth(Inch)
17"	7.0"-11"	1.5"-5.5"
18''	7.5"-14"	1.5"-8.0"
19''	7.0"-14"	1.5"-8.0"
20''	8.0"-14"	1.5"-8.0"
21''	8.0"-14"	1.5"-8.0"
22''	8.0"-14"	2.5"-8.0"
24''	8.0"-14"	2.5"-3.0"
26''	8.5"-12"	2.0"-4.0"

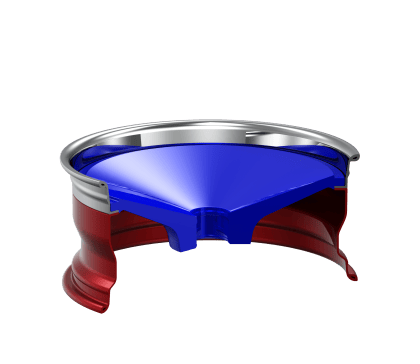

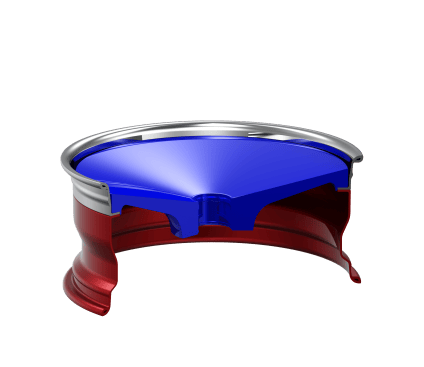

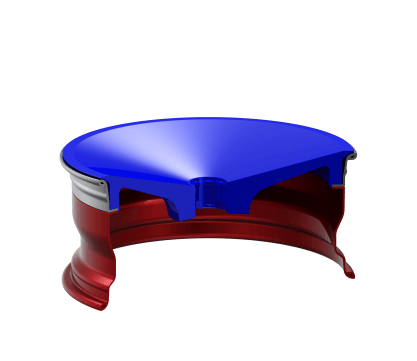

Forged Barrel and center Disc assembly diagram

Forged rim Forged barrel Forged 2 piece barrel Forged 3 piece barrel Forged barrel supplier
