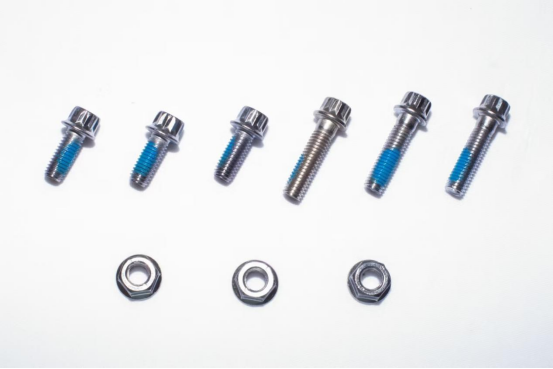

Twelve Angle Flange Face Left-hand Thread Screw Sus304

loading

Availability:

99

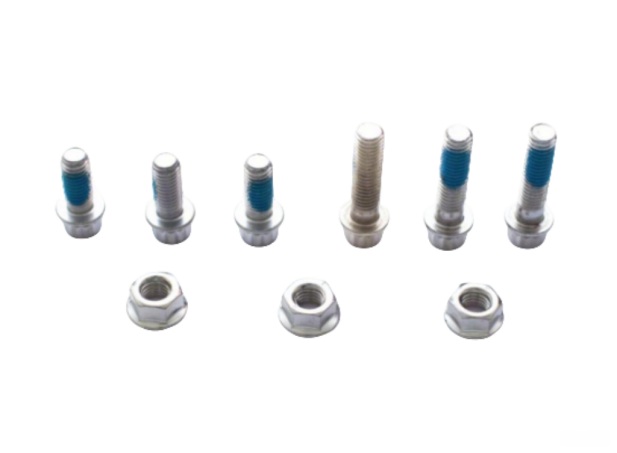

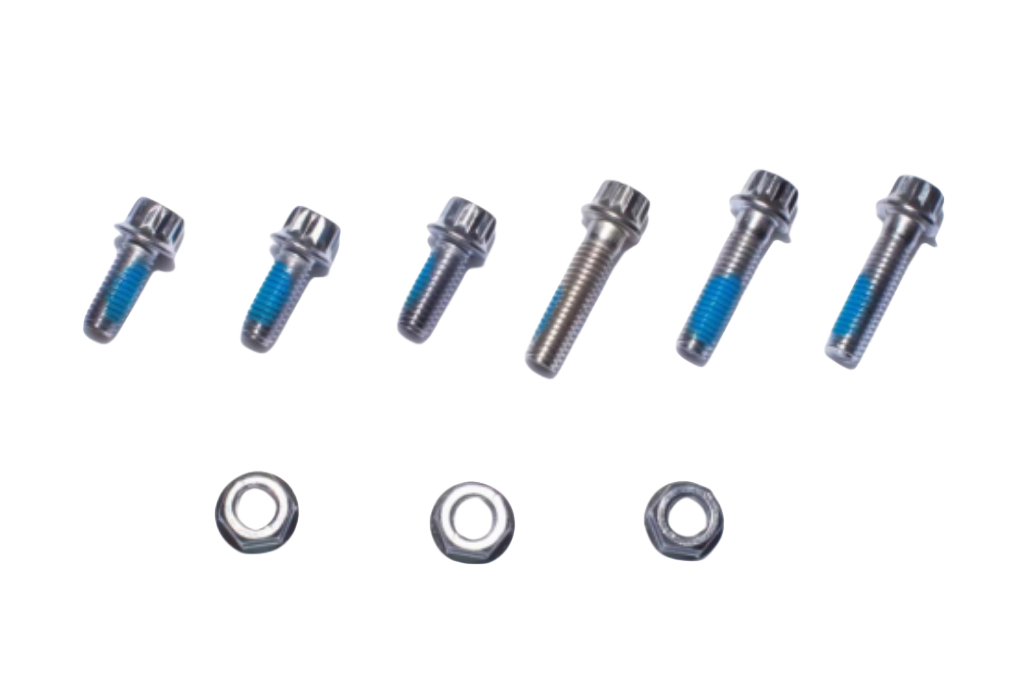

Twelve Angle Flange Face Left-hand Thread Screw

SUS304

M8*1.25*20


Six Angle Flange Face Nuts Non-locking

SUS304

M8*1.25

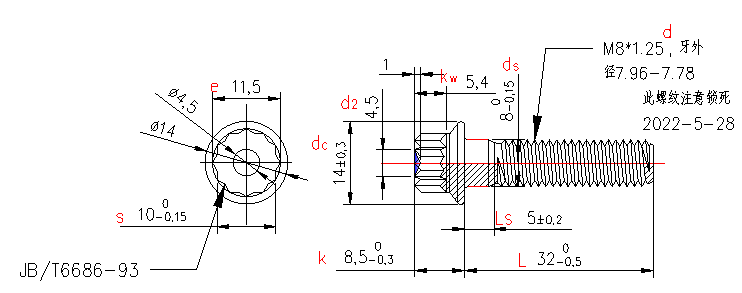

Measuring Dimension image3
Point
dc 13.7-14.3
k 8.2-8.5
L 19.5-20
d 7.78-7.96
s 9.85-10.0
e 11.5Max
kw 5.4
