R-FL (19"-20") 2-PC 3-PC

loading

Availability:

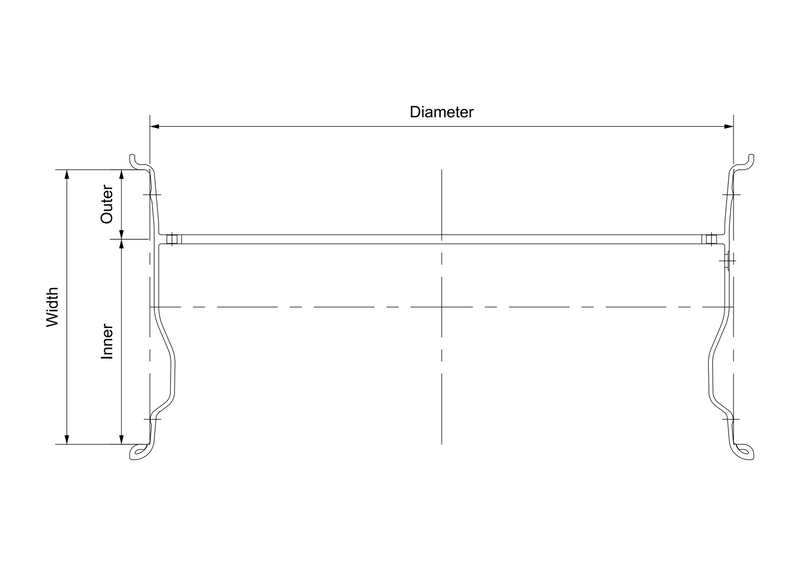

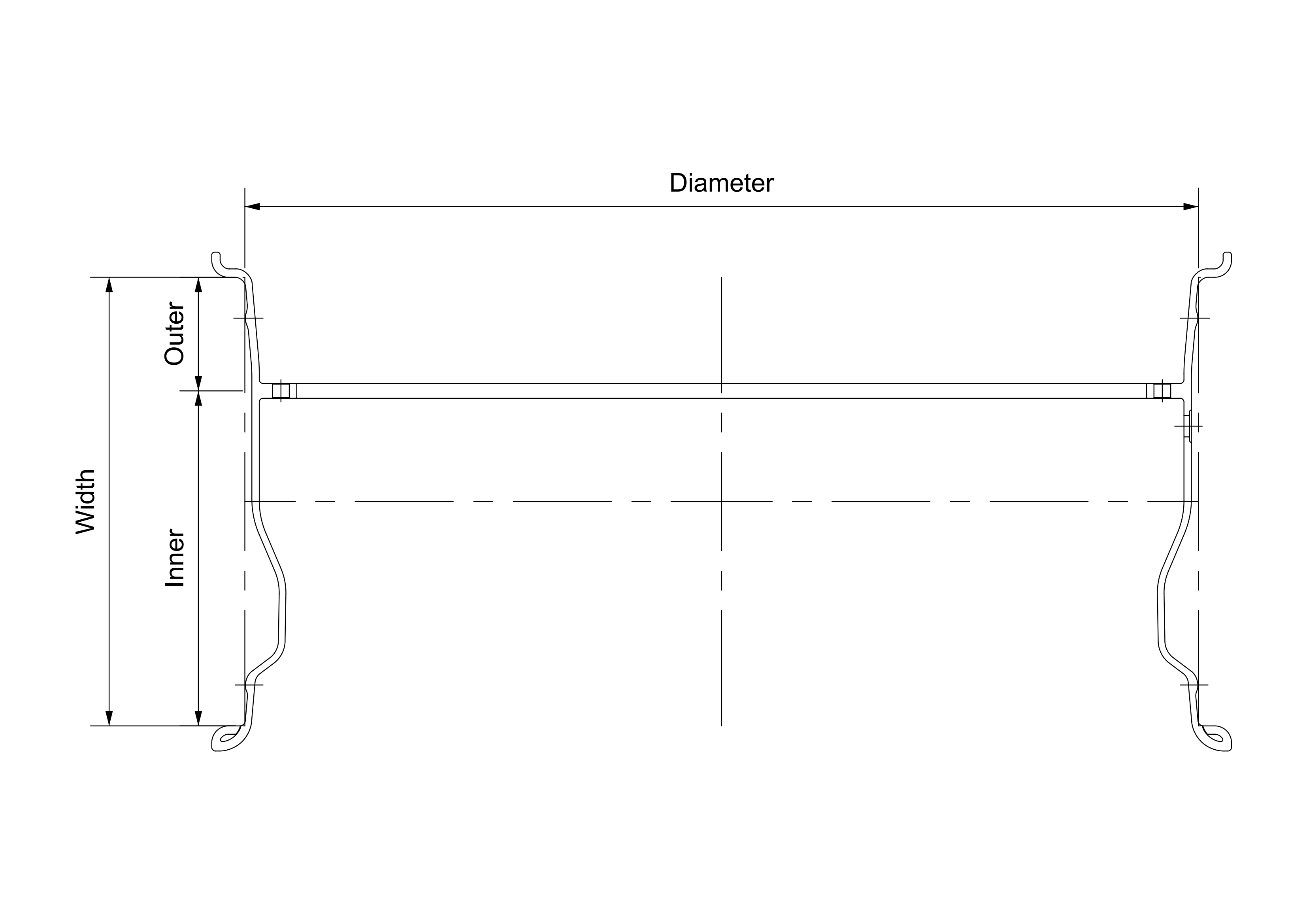

IPC Forged Barrel General Diamensional Specification Table


The diameter and width combinations in the table below apply to 2-PC and 3-PC forged barrels

SIZES (R-FL)WidthOuter / Inner
19Inch8.02.5/5.5












8.52.5/6.0












9.02.5/6.53.0/6.0











9.52.5/7.03.0/6.53.5/6.0










10.02.5/7.53.0/7.03.5/6.54.0/6.0









10.52.5/8.03.0/7.53.5/7.04.0/6.54.5/6.0








11.02.5/8.53.0/8.03.5/7.54.0/7.04.5/6.55.0/6.0







11.52.5/9.03.0/8.53.5/8.04.0/7.54.5/7.05.0/6.55.5/6.0






12.02.5/9.53.0/9.03.5/8.54.0/8.04.5/7.55.0/7.05.5/6.56.0/6.0





12.52.5/10.03.0/9.53.5/9.04.0/8.54.5/8.05.0/7.55.5/7.06.0/6.56.5/6.0




13.02.5/10.53.0/10.03.5/9.5
4.5/8.55.0/8.05.5/7.56.0/7.0
7.0/6.0



13.52.5/11.03.0/10.53.5/10.0

5.0/8.55.5/8.06.0/7.5

7.5/6.0


14.02.5/11.53.0/11.03.5/10.5


5.5/8.56.0/8.0


8.0/6.0

20Inch8.52.5/6.0












9.02.5/6.5












9.52.5/7.03.0/6.5











10.02.5/7.53.0/7.03.5/6.5










10.52.5/8.03.0/7.53.5/7.04.0/6.5









11.02.5/8.53.0/8.03.5/7.54.0/7.04.5/6.5








11.52.5/9.03.0/8.53.5/8.04.0/7.54.5/7.05.0/6.5







12.02.5/9.53.0/9.03.5/8.54.0/8.04.5/7.55.0/7.05.5/6.5






12.52.5/10.03.0/9.53.5/9.04.0/8.54.5/8.05.0/7.55.5/7.06.0/6.5





13.02.5/10.53.0/10.03.5/9.5
4.5/8.55.0/8.05.5/7.56.0/7.0





13.52.5/11.03.0/10.53.5/10.0

5.0/8.55.5/8.06.0/7.5





14.02.5/11.53.0/11.03.5/10.5


5.5/8.56.0/8.0






Previous:
Next:
RELATED PRODUCTS
RN-ZL (18
RN-ZL (18"-22") 2-PC 3-PC
RN-Z (18
RN-Z (18"-22") 2-PC 3-PC
R-F (17
R-F (17"-26") 2-PC 3-PC

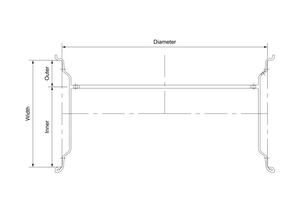

R-ZL (18
