R-Z (15"-17") 2-PC 3-PC

loading

Availability:

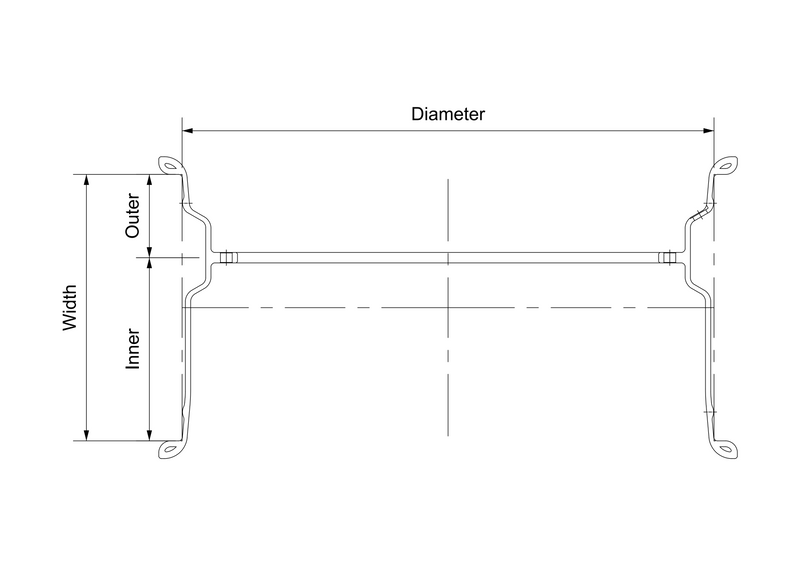

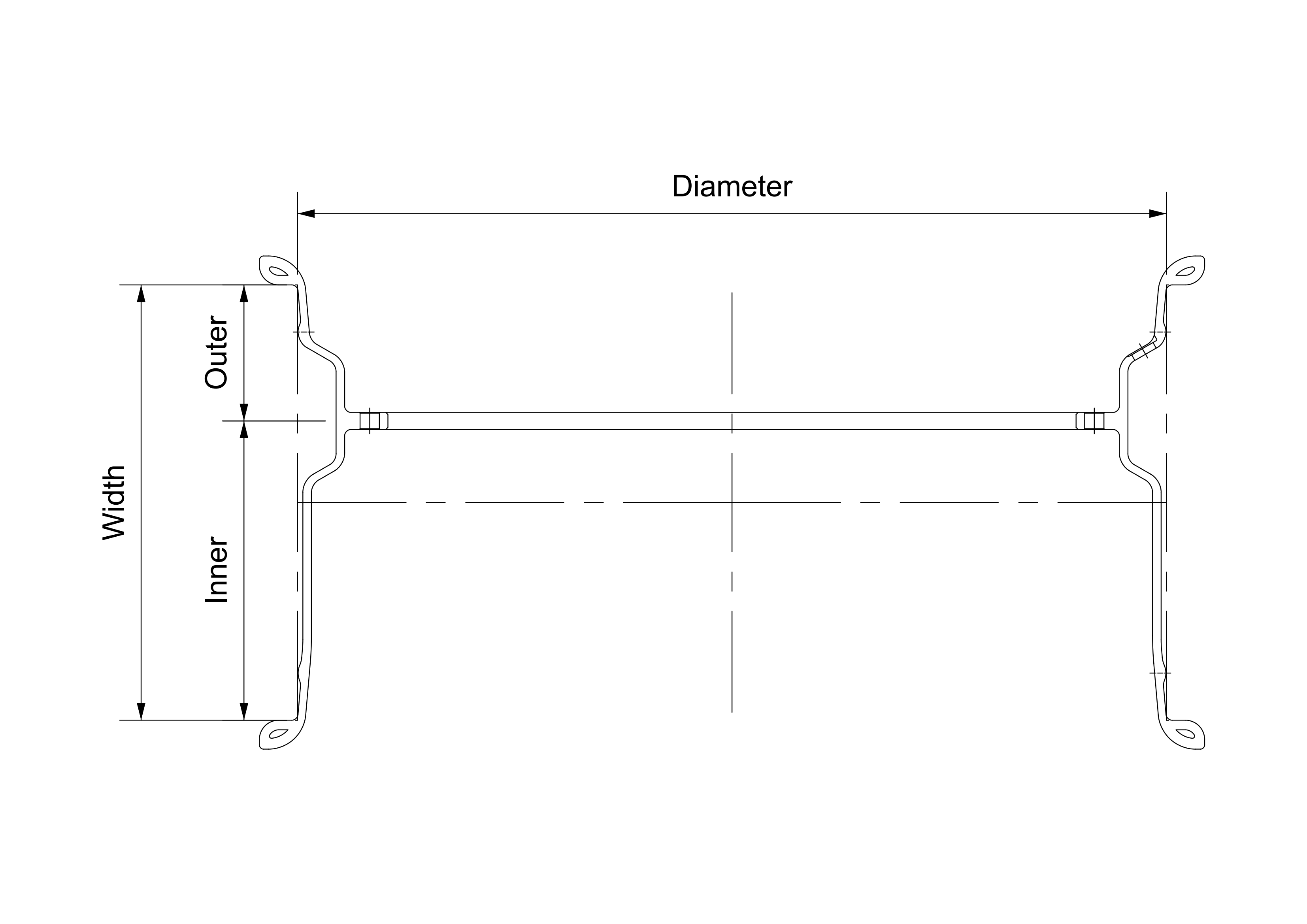

IPC Forged Barrel General Diamensional Specification Table


The diameter and width combinations in the table below apply to 2-PC and 3-PC forged barrels


SIZES (R-Z)WidthOuter / Inner
15Inch4.52.0/2.5












5.02.0/3.02.5/2.5











5.52.0/3.52.5/3.03.0/2.5










6.02.0/4.02.5/3.53.0/3.03.5/2.5









6.52.0/4.52.5/4.03.0/3.53.5/3.04.0/2.5








7.02.0/5.02.5/4.53.0/4.03.5/3.54.0/3.04.5/2.5







7.52.0/5.52.5/5.03.0/4.53.5/4.04.0/3.54.5/3.0







8.02.0/6.02.5/5.53.0/5.03.5/4.54.0/4.04.5/3.5







8.52.0/6.52.5/6.03.0/5.53.5/5.04.0/4.54.5/4.0







9.0
2.5/6.53.0/6.03.5/5.54.0/5.04.5/4.5







9.5

3.0/6.53.5/6.04.0/5.54.5/5.0







10.0


3.5/6.54.0/6.04.5/5.5







10.5



4.0/6.54.5/6.0







11.0




4.5/6.5







16Inch4.52.0/2.5












5.02.0/3.02.5/2.5











5.52.0/3.52.5/3.03.0/2.5










6.02.0/4.02.5/3.53.0/3.03.5/2.5









6.52.0/4.52.5/4.03.0/3.53.5/3.04.0/2.5








7.02.0/5.02.5/4.53.0/4.03.5/3.54.0/3.04.5/2.5







7.52.0/5.52.5/5.03.0/4.53.5/4.04.0/3.54.5/3.0







8.02.0/6.02.5/5.53.0/5.03.5/4.54.0/4.04.5/3.5







8.52.0/6.52.5/6.03.0/5.53.5/5.04.0/4.54.5/4.0







9.0
2.5/6.53.0/6.03.5/5.54.0/5.04.5/4.5







9.5

3.0/6.53.5/6.04.0/5.54.5/5.0







10.0


3.5/6.54.0/6.04.5/5.5







10.5



4.0/6.54.5/6.0







11.0




4.5/6.5







17Inch4.52.0/2.5












5.02.0/3.02.5/2.5











5.52.0/3.52.5/3.03.0/2.5










6.02.0/4.02.5/3.53.0/3.03.5/2.5









6.52.0/4.52.5/4.03.0/3.53.5/3.04.0/2.5








7.02.0/5.02.5/4.53.0/4.03.5/3.54.0/3.04.5/2.5







7.52.0/5.52.5/5.03.0/4.53.5/4.04.0/3.54.5/3.05.0/2.5






8.02.0/6.02.5/5.53.0/5.03.5/4.54.0/4.04.5/3.55.0/3.05.5/2.5





8.52.0/6.52.5/6.03.0/5.53.5/5.04.0/4.54.5/4.05.0/3.55.5/3.0





9.0
2.5/6.53.0/6.03.5/5.54.0/5.04.5/4.55.0/4.05.5/3.5





9.5

3.0/6.53.5/6.04.0/5.54.5/5.05.0/4.55.5/4.0





10.0


3.5/6.54.0/6.04.5/5.55.5/5.05.5/4.5





10.5



4.0/6.54.5/6.05.0/5.55.5/5.0





11.0




4.5/6.55.0/6.05.5/5.5





11.5





5.0/6.55.5/6.0





12.0






5.5/6.5
