R-ZL (18"-22") 2-PC 3-PC

loading

Availability:

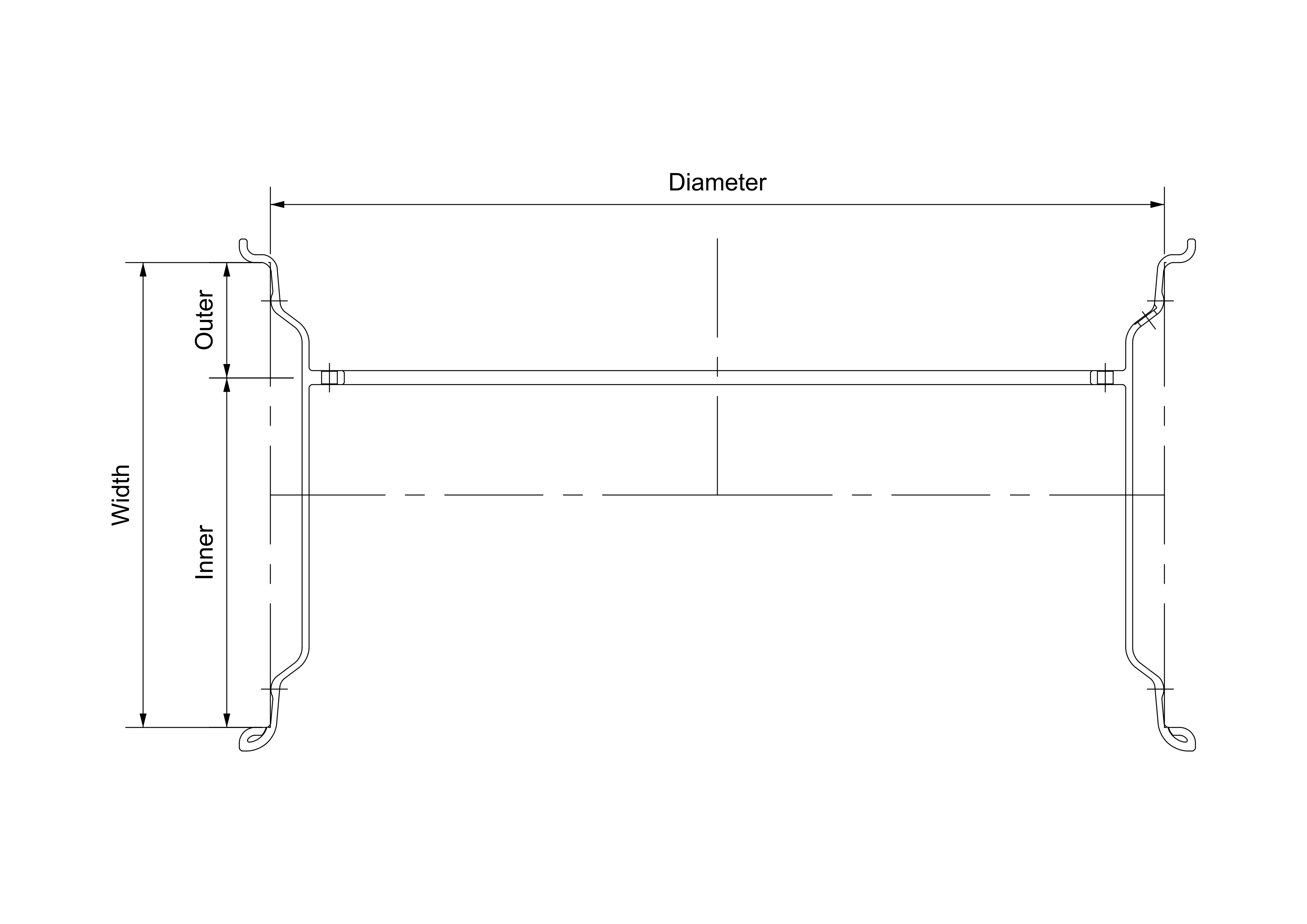

IPC Forged Barrel General Diamensional Specification Table


The diameter and width combinations in the table below apply to 2-PC and 3-PC forged barrels

SIZES (R-ZL)WidthOuter / Inner
18Inch5.51.5/4.0












6.01.5/4.52.0/4.0











6.51.5/5.02.0/4.52.5/4.0










7.01.5/5.52.0/5.02.5/4.53.0/4.0









7.51.5/6.02.0/5.52.5/5.03.0/4.53.5/4.0








8.01.5/6.52.0/6.02.5/5.53.0/5.03.5/4.54.0/4.0







8.51.5/7.02.0/6.52.5/6.03.0/5.53.5/5.04.0/4.54.5/4.0






9.01.5/7.52.0/7.02.5/6.53.0/6.03.5/5.54.0/5.04.5/4.55.0/4.0





9.51.5/8.02.0/7.52.5/7.03.0/6.53.5/6.04.0/5.54.5/5.05.0/4.55.5/4.0




10.01.5/8.52.0/8.02.5/7.53.0/7.03.5/6.54.0/6.04.5/5.55.0/5.05.5/4.56.0/4.0



10.51.5/9.02.0/8.52.5/8.03.0/7.53.5/7.04.0/6.54.5/6.05.0/5.55.5/5.06.0/4.56.5/4.0


11.01.5/9.52.0/9.02.5/8.53.0/8.03.5/7.54.0/7.04.5/6.55.0/6.05.5/5.56.0/5.06.5/4.57.0/4.0

11.5
2.0/9.52.5/9.03.0/8.53.5/8.04.0/7.54.5/7.05.0/6.55.5/6.06.0/5.56.5/5.07.0/4.57.5/4.0
12.0
2.0/10.02.5/9.53.0/9.03.5/8.54.0/8.04.5/7.55.0/7.05.5/6.56.0/6.06.5/5.57.0/5.07.5/4.58.0/4.0
12.5
2.0/10.52.5/10.03.0/9.53.5/9.0
4.5/8.05.0/7.55.5/7.06.0/6.56.5/6.07.0/5.57.5/5.08.0/4.5
13.0
2.0/11.02.5/10.53.0/10.03.5/9.5

5.0/8.05.5/7.56.0/7.0
7.0/6.07.5/5.58.0/5.0
13.5

2.5/11.03.0/10.53.5/10.0


5.5/8.06.0/7.5

7.5/6.08.0/5.5
14.0

2.5/11.53.0/11.03.5/10.5



6.0/8.0


8.0/6.0
19Inch7.01.5/5.5












7.51.5/6.02.0/5.5











8.01.5/6.52.0/6.02.5/5.5










8.51.5/7.02.0/6.52.5/6.03.0/5.5









9.01.5/7.52.0/7.02.5/6.53.0/6.03.5/5.5








9.51.5/8.02.0/7.52.5/7.03.0/6.53.5/6.04.0/5.5







10.01.5/8.52.0/8.02.5/7.53.0/7.03.5/6.54.0/6.04.5/5.5






10.51.5/9.02.0/8.52.5/8.03.0/7.53.5/7.04.0/6.54.5/6.05.0/5.5





11.01.5/9.52.0/9.02.5/8.53.0/8.03.5/7.54.0/7.04.5/6.55.0/6.05.5/5.5




11.51.5/10.02.0/9.52.5/9.03.0/8.53.5/8.04.0/7.54.5/7.05.0/6.55.5/6.06.0/5.5



12.01.5/10.52.0/10.02.5/9.53.0/9.03.5/8.54.0/8.04.5/7.55.0/7.05.5/6.56.0/6.06.5/5.5


12.5

2.5/10.03.0/9.53.5/9.04.0/8.54.5/8.05.0/7.55.5/7.06.0/6.56.5/6.07.0/5.5

13.0

2.5/10.53.0/10.53.5/9.5
4.5/8.55.0/8.05.5/7.56.0/7.0
7.0/6.07.5/5.5
13.5

2.5/11.03.0/11.03.5/10.0

5.0/8.55.5/8.06.0/7.5

7.5/6.08.0/5.5
14.0

2.5/11.53.0/11.53.5/10.5


5.5/8.56.0/8.0


8.0/6.0
20Inch7.01.5/5.5












7.51.5/6.02.0/5.5











8.01.5/6.52.0/6.02.5/5.5










8.51.5/7.02.0/6.52.5/6.03.0/5.5









9.01.5/7.52.0/7.02.5/6.53.0/6.03.5/5.5








9.51.5/8.02.0/7.52.5/7.03.0/6.53.5/6.04.0/5.5







10.01.5/8.52.0/8.02.5/7.53.0/7.03.5/6.54.0/6.04.5/5.5






10.51.5/9.02.0/8.52.5/8.03.0/7.53.5/7.04.0/6.54.5/6.05.0/5.5





11.01.5/9.52.0/9.02.5/8.53.0/8.03.5/7.54.0/7.04.5/6.55.0/6.05.5/5.5




11.51.5/10.02.0/9.52.5/9.03.0/8.53.5/8.04.0/7.54.5/7.05.0/6.55.5/6.06.0/5.5



12.01.5/10.52.0/10.02.5/9.53.0/9.03.5/8.54.0/8.04.5/7.55.0/7.05.5/6.56.0/6.06.5/5.5


12.5

2.5/10.03.0/9.53.5/9.04.0/8.54.5/8.05.0/7.55.5/7.06.0/6.56.5/6.07.0/5.5

13.0

2.5/10.53.0/10.53.5/9.5
4.5/8.55.0/8.05.5/7.56.0/7.0
7.0/6.07.5/5.5
13.5

2.5/11.03.0/11.03.5/10.0

5.0/8.55.5/8.06.0/7.5

7.5/6.08.0/5.5
14.0

2.5/11.53.0/11.53.5/10.5


5.5/8.56.0/8.0


8.0/6.0
21Inch7.01.5/5.5












7.51.5/6.02.0/5.5











8.01.5/6.52.0/6.02.5/5.5










8.51.5/7.02.0/6.52.5/6.03.0/5.5









9.01.5/7.52.0/7.02.5/6.53.0/6.03.5/5.5








9.51.5/8.02.0/7.52.5/7.03.0/6.53.5/6.04.0/5.5







10.01.5/8.52.0/8.02.5/7.53.0/7.03.5/6.54.0/6.04.5/5.5






10.51.5/9.02.0/8.52.5/8.03.0/7.53.5/7.04.0/6.54.5/6.05.0/5.5





11.01.5/9.52.0/9.02.5/8.53.0/8.03.5/7.54.0/7.04.5/6.55.0/6.05.5/5.5




11.51.5/10.02.0/9.52.5/9.03.0/8.53.5/8.04.0/7.54.5/7.05.0/6.55.5/6.06.0/5.5



12.01.5/10.52.0/10.02.5/9.53.0/9.03.5/8.54.0/8.04.5/7.55.0/7.05.5/6.56.0/6.06.5/5.5


12.5

2.5/10.03.0/9.53.5/9.04.0/8.54.5/8.05.0/7.55.5/7.06.0/6.56.5/6.07.0/5.5

13.0

2.5/10.53.0/10.53.5/9.5
4.5/8.55.0/8.05.5/7.56.0/7.0
7.0/6.07.5/5.5
13.5

2.5/11.03.0/11.03.5/10.0

5.0/8.55.5/8.06.0/7.5

7.5/6.08.0/5.5
14.0

2.5/11.53.0/11.53.5/10.5


5.5/8.56.0/8.0


8.0/6.0
22Inch7.01.5/5.5












7.51.5/6.02.0/5.5











8.01.5/6.52.0/6.02.5/5.5










8.51.5/7.02.0/6.52.5/6.03.0/5.5









9.01.5/7.52.0/7.02.5/6.53.0/6.03.5/5.5








9.51.5/8.02.0/7.52.5/7.03.0/6.53.5/6.04.0/5.5







10.01.5/8.52.0/8.02.5/7.53.0/7.03.5/6.54.0/6.04.5/5.5






10.51.5/9.02.0/8.52.5/8.03.0/7.53.5/7.04.0/6.54.5/6.05.0/5.5





11.01.5/9.52.0/9.02.5/8.53.0/8.03.5/7.54.0/7.04.5/6.55.0/6.05.5/5.5




11.51.5/10.02.0/9.52.5/9.03.0/8.53.5/8.04.0/7.54.5/7.05.0/6.55.5/6.06.0/5.5



12.01.5/10.52.0/10.02.5/9.53.0/9.03.5/8.54.0/8.04.5/7.55.0/7.05.5/6.56.0/6.06.5/5.5


12.5

2.5/10.03.0/9.53.5/9.04.0/8.54.5/8.05.0/7.55.5/7.06.0/6.56.5/6.07.0/5.5

13.0

2.5/10.53.0/10.53.5/9.5
4.5/8.55.0/8.05.5/7.56.0/7.0
7.0/6.07.5/5.5
13.5

2.5/11.03.0/11.03.5/10.0

5.0/8.55.5/8.06.0/7.5

7.5/6.08.0/5.5
14.0

2.5/11.53.0/11.53.5/10.5


5.5/8.56.0/8.0


8.0/6.0
